If the projector cannot be set up so that it is perpendicular to the screen, you can

use the keystone correction function which is described on the following page

to adjust the projected images if the angle of the projector is within a range of

approximately 30° vertically or approximately 10° horizontally from the

perpendicular.

The values given here are for when the image is at the smallest zoom setting

(telephoto). The maximum angles will be smaller if the zoom setting has been

increased in the wide angle direction. Furthermore, if the projector has been

tilted both vertically and horizontally, the maximum adjustable angle will again

be smaller than the maximum angle if the projector had been tilted in only one

direction.

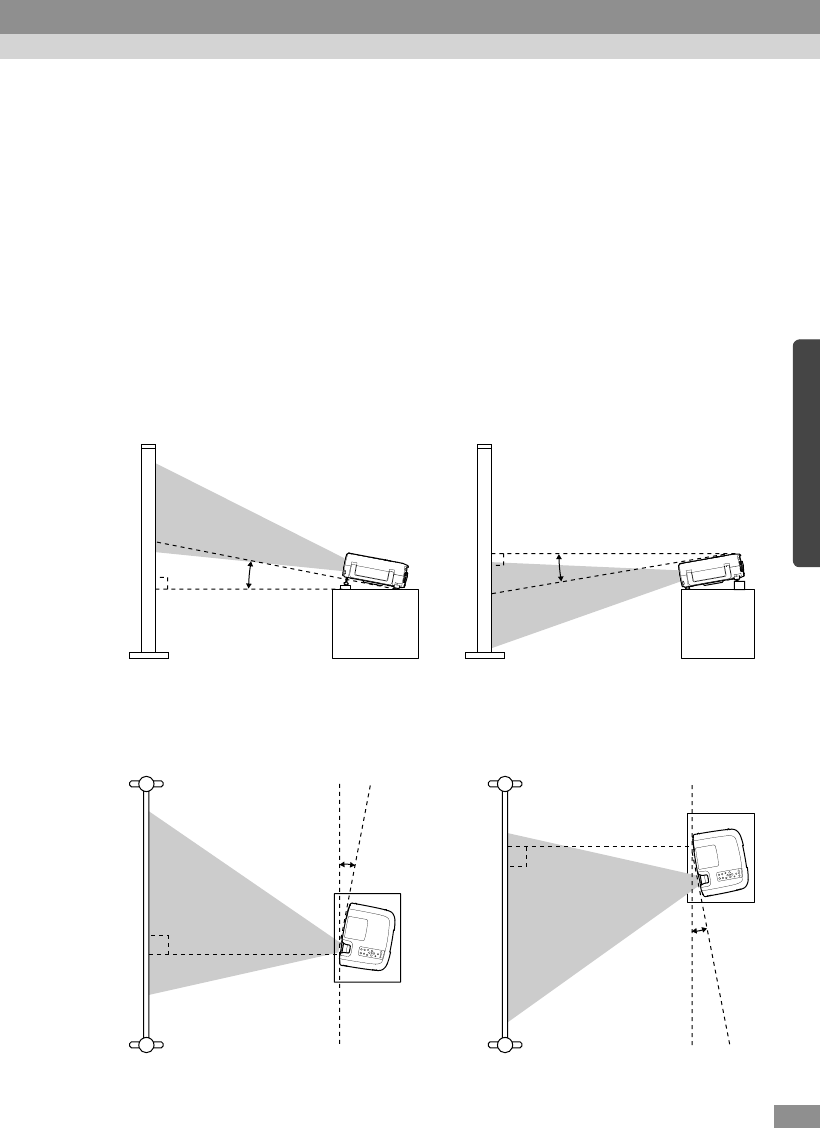

• When tilted vertically

• When tilted horizontally

30°

Approx. 30° above Approx. 30° below

10°

Approx. 10° to the leftApprox. 10° to the right
