Use the optional computer cable to connect the Computer 2/Component Video

port at the rear of the projector to the monitor port of the computer.

See “Appendix: Optional Accessories” (P.100)

Tip :

• After making the connections, change the Comp2/YCbCr Input setting in the Setting

menu to Analog-RGB. (P.69)

• Do not bind the power cord and the computer cable together, otherwise image

interference or errors in operation may result.

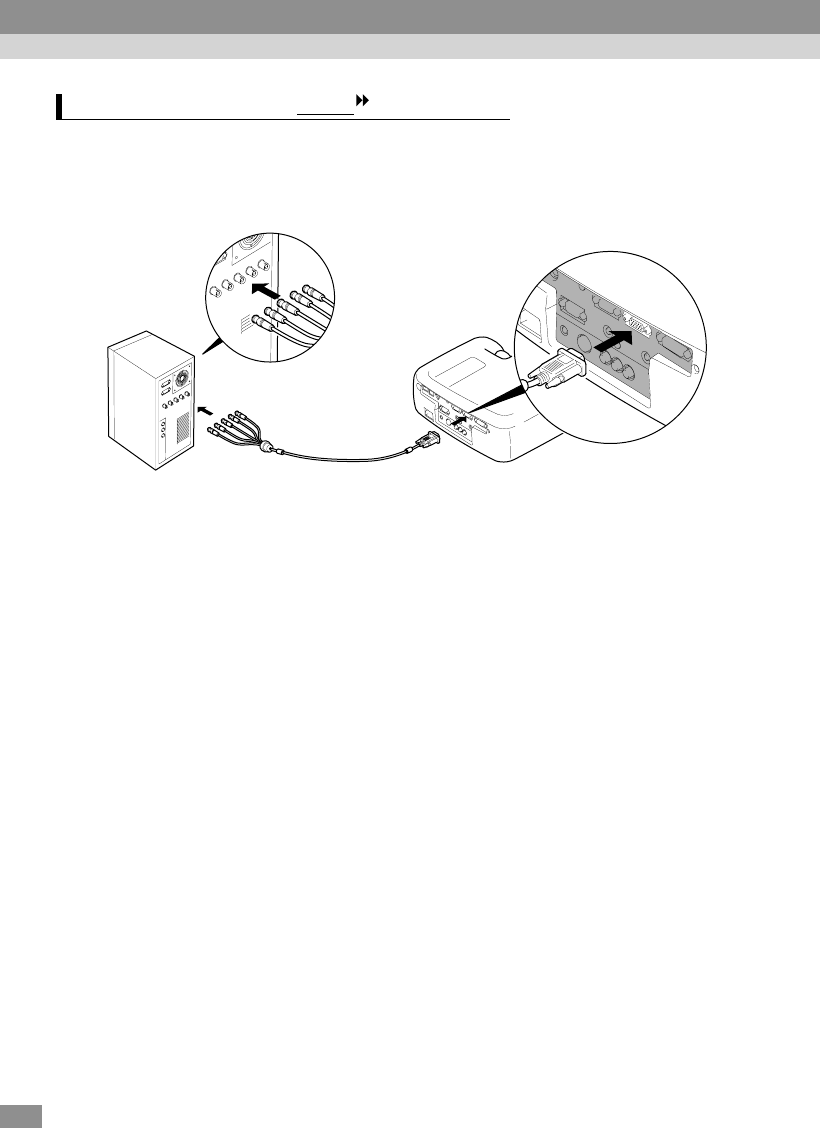

If the monitor port is a 5BNC port

To Computer 2/

Component Video port

To monitor port

Computer cable

(optional)

Connecting to a Computer
