Connecting to an External Speaker

You can connect the projector's Audio Out port to speakers with a built-in

amplifier in order to enjoy even fuller sound.

Use a commercially-available audio cable with pin jack ⇔ stereo mini jack 3.5

mm (0.14 inches) plugs or similar.

Use an audio cable with a connector that matches the port for the audio

equipment.

Tip :

If a stereo mini jack is connected to the Audio Out port, the sound will be externally

output, and will stop coming out from the projector's built-in speaker.

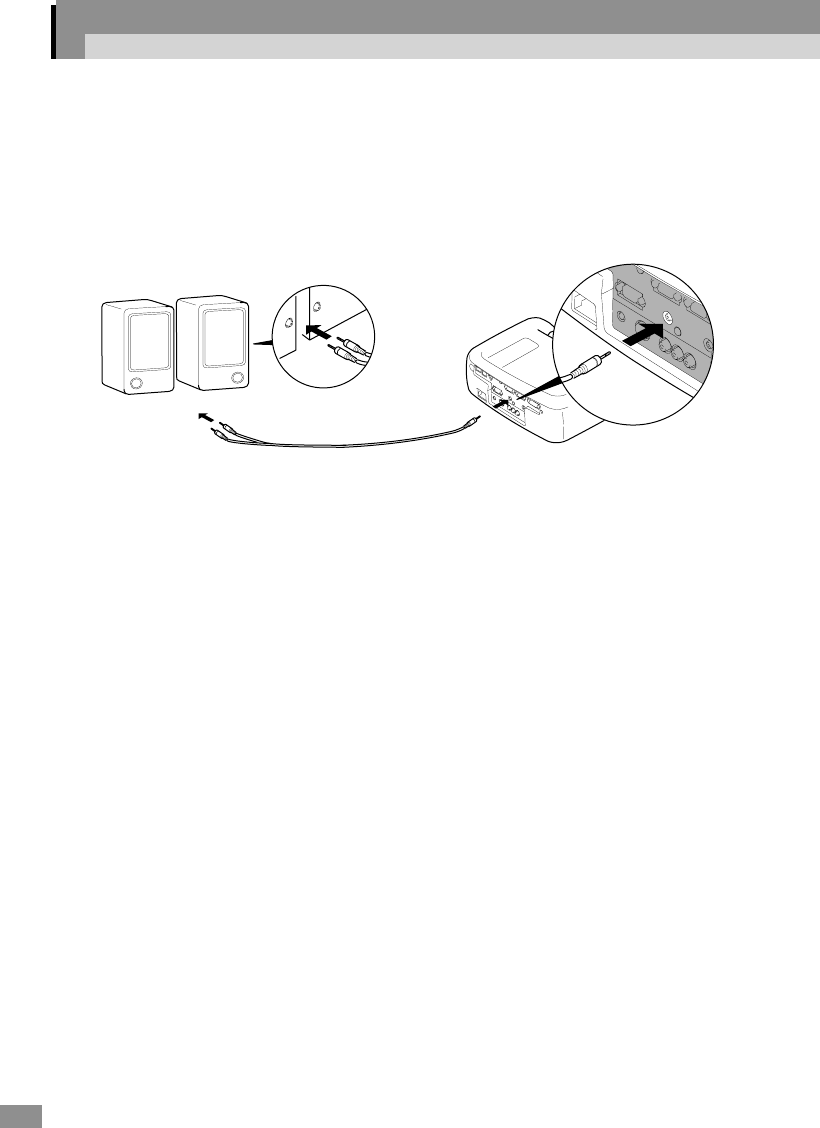

To Audio Out port

Audio cable

(commercially-available)

To external audio

equipment
